Product Summary

The STCC02-ED5 is a control circuit embedding most of the analog & power circuitry of a microwaves oven control module. It interfaces the micro-controller with the power and process sections of the oven. The applications of the STCC02-ED5 are Microwaves oven analog and power driver control and Home Appliance digital control.

Parametrics

STCC02-ED5 absolute maximum ratings: (1)VDD VDD Output supply voltage: - 0.3 to 6 V; (2)VIN VIN Input supply voltage: - 0.3 to 30 V; (3)VDS, VCC DS, VCC Door switch and power supply voltage: - 0.3 to 30 V; (4)VSYN SYN AC input voltage: - 1 to 30 V; (5)VMO BUZ1, MAG2, FAN1 Output voltage: - 0.3 to 30 V; (6)VI, IN1, IN2, IN3 Input logic voltage: - 0.3 to VDD + 0.3V V; (7)VO ZVS, CDD, /RST Output logic voltage: - 0.3 to VDD + 0.3V V; (8)IM DS, VCC Maximum sourced current pulse: 120 mA; (9)TAMB AII Operating ambient temperature: - 10 to 85℃; (10)TJ Operating junction temperature: - 10 to 150℃; (11)Storage junction temperature: - 25 to 150℃.

Features

STCC02-ED5 features: (1)Wide range input supply voltage operation: 7 to 27 V; (2)5 V ± 10% full tolerance Voltage Regulator; (3)MCU reset circuit with activation delay timer and 45μs digital noise filter; (4)Highly immune and 30 μs filtered Zero Voltage Synchronization; (5)Door Closed detection adaptation; (6)One 100 mA fan relay coil driver with demagnetizing diode; (7)One 100 mA magnetron relay coil driver with demagnetizing diode including down lock circuit based on fan drive output state; (8)One 17 mA buzzer driver; (9)Ambient temperature: - 10 to 80℃.

Diagrams

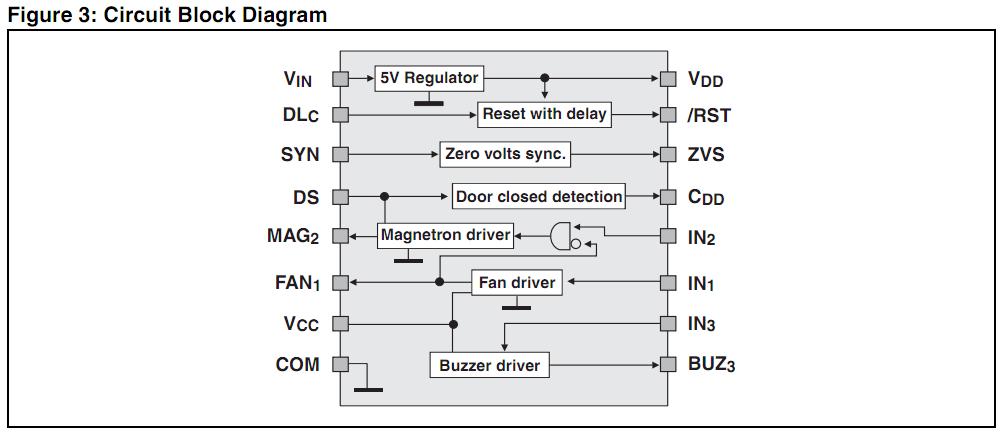

STCC02-ED5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STCC02-ED5
STCC02-ED5
STMicroelectronics
Triacs CONTROL CIRCUIT
Data Sheet
Negotiable
