Product Summary

The LT1529CT#PBF is a 3A low dropout regulator with micropower quiescent current and shutdown. The LT1529CT#PBF is capable of supplying 3A of output current with a dropout voltage of 0.6V. Designed for use in battery-powered systems, the low quiescent current, 50μA operating and 16μA in shutdown, make them an ideal choice. The quiescent current is well controlled; it does not rise in dropout as it does with many other low dropout PNP regulators.

Parametrics

LT1529CT#PBF absolute maximum ratings: (1)Input Voltage: ±15V; (2)OUTPUT Pin Reverse Current: 10mA; (3)SENSE Pin Current: 10mA; (4)ADJ Pin Current: 10mA; (5)SHDN Pin Input Voltage: 6.5V, -0.6V; (6)SHDN Pin Input Current: 5mA; (7)Output Short-Circuit Duration: Indefinite; (8)Storage Temperature Range: -65℃to 150℃; (9)Operating Junction Temperature Range: Commercial: 0℃to 125℃ Industrial: -45℃to 125℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1529CT#PBF features: (1)Dropout Voltage: 0.6V at IOUT = 3A; (2)Output Current: 3A; (3)Quiescent Current: 50μA; (4)No Protection Diodes Needed; (5)Adjustable Output from 3.8V to 14V; (6)3.3V and 5V Fixed Output Voltages; (7)Controlled Quiescent Current in Dropout; (8)Shutdown IQ = 16μA; (9)Stable with 22μF Output Capacitor; (10)Reverse Battery Protection; (11)No Reverse Current; (12)Thermal Limiting.

Diagrams

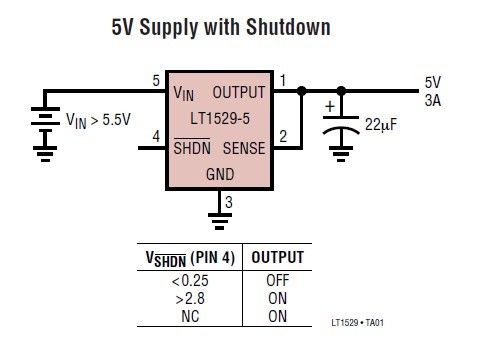

LT1529CT#PBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

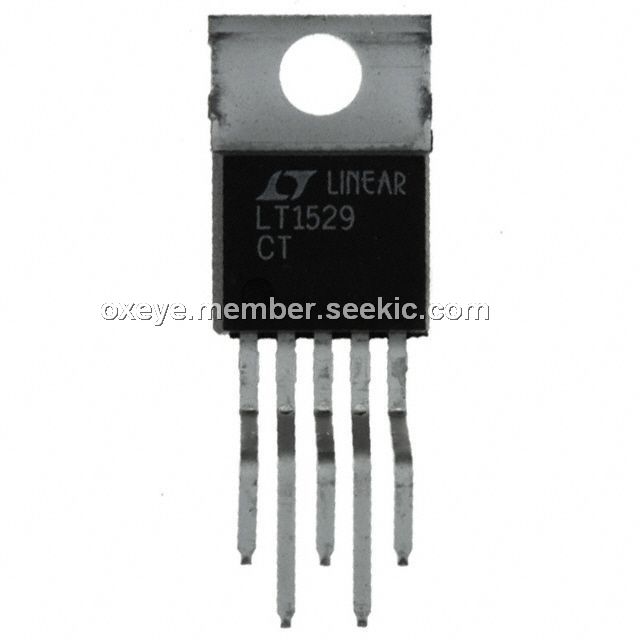

LT1529CT#PBF
LT1529CT#PBF


IC REG LDO ADJ 3A TO220

Data Sheet

0-1: $4.07
1-25: $2.70
25-100: $2.04
