Product Summary

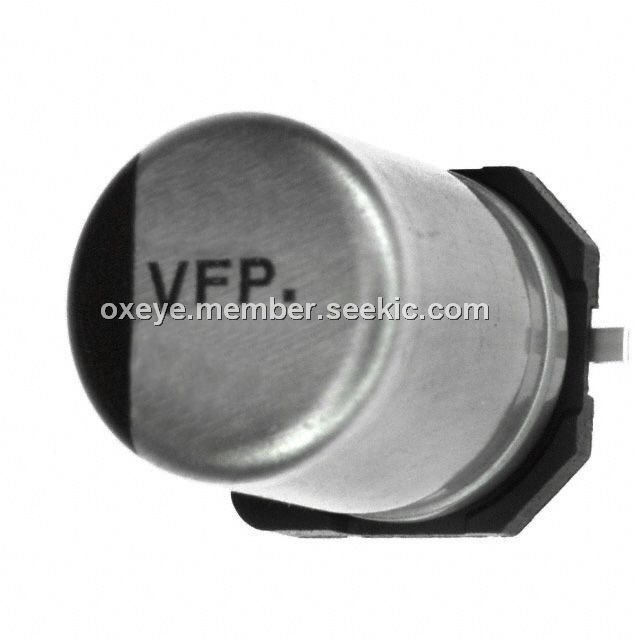

The EEEFP1V331AP is a Surface Mount Type Aluminum Electrolytic Capacitor.
Parametrics
EEEFP1V331AP absolute maximum ratings: (1)Category Temp. Range –55 to +105℃; (2)Rated W.V. Range 6.3 V.DC to 35 V.DC; (3)Nominal Cap. Range 10 μF to 1800 μF; (4)Capacitance Tolerance ±20 % (120 Hz/+20℃); (5)DC Leakage Cur rent I < 0.01 CV or 3 (μA) After 2 minutes (whichever is greater).
Features
EEEFP1V331AP features: (1)Low ESR (30 % to 50 % less than FK series); (2)Endurance: 2000 h at 105℃; (3)Vibration-proof product is available upon request; (4)RoHS directive compliant.

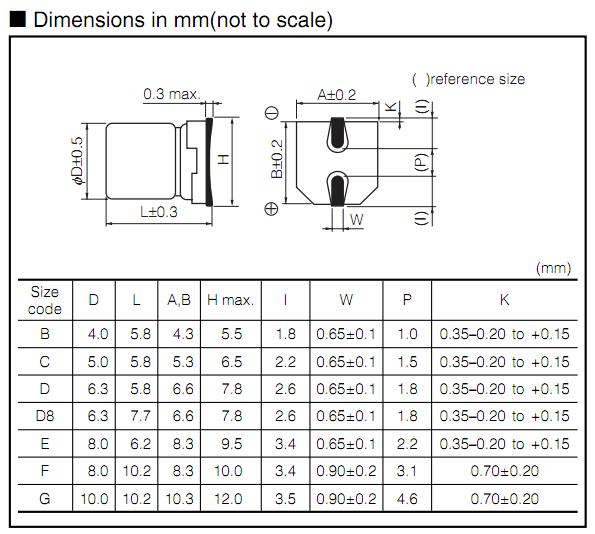

Diagrams
 |
