Product Summary

The EP2S30F484C5N is an FPGA based on a 1.2-V, 90-nm, all-layer copper SRAM process and features a new logic structure that maximizes performance, and enables device densities approaching 180,000 equivalent logic elements (LEs). The EP2S30F484C5N offers up to 9 Mbits of on-chip, TriMatrix memory for demanding, memory intensive applications and has up to 96 DSP blocks with up to 384 (18-bit × 18-bit) multipliers for efficient implementation of high performance filters and other DSP functions.

Parametrics

EP2S30F484C5N absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.5 to 1.8 V; (2)VCCIO, Supply voltage With respect to ground: –0.5 to 4.6 V; (3)VCCPD, Supply voltage With respect to ground: –0.5 to 4.6 V; (4)VCCA, Analog power supply for PLLs With respect to ground: –0.5 to 1.8 V; (5)VCCD, Digital power supply for PLLs With respect to ground: –0.5 to 1.8 V; (6)VI, DC input voltage: –0.5 to 4.6 V; (7)IOUT, DC output current, per pin: –25 to 40 mA; (8)TSTG, Storage temperature No bias: –65 to 150℃; (9)TJ, Junction temperature BGA packages under bias: –55 to 125℃.

Features

EP2S30F484C5N features: (1)15,600 to 179,400 equivalent LEs; (2)New and innovative adaptive logic module (ALM), the basic building block of the Stratix II architecture, maximizes performance and resource usage efficiency; (3)Up to 9,383,040 RAM bits (1,172,880 bytes) available without reducing logic resources; (4)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO) buffers; (5)High-speed DSP blocks provide dedicated implementation of multipliers (at up to 450 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters; (6)Up to 16 global clocks with 24 clocking resources per device region; (7)Clock control blocks support dynamic clock network enable/disable, which allows clock networks to power down to reduce power consumption in user mode; (8)Up to 12 PLLs (four enhanced PLLs and eight fast PLLs) per device provide spread spectrum, programmable bandwidth, clock switch-over, real-time PLL reconfiguration, and advanced multiplication and phase shifting.

Diagrams

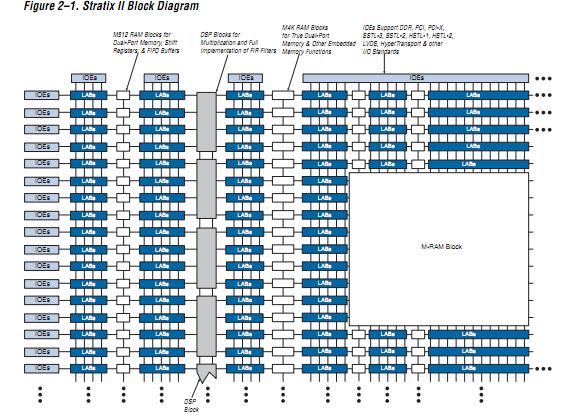

EP2S30F484C5N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

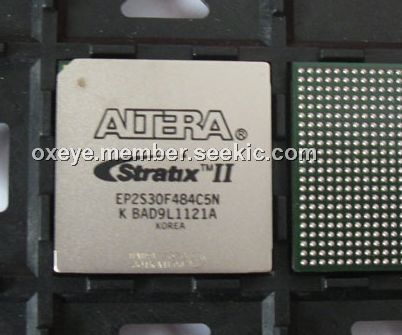

EP2S30F484C5N
EP2S30F484C5N


IC STRATIX II FPGA 30K 484-FBGA

Data Sheet

0-1: $243.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2S
EP2S

Other


Data Sheet

Negotiable
EP2S130F1020C3
EP2S130F1020C3


IC STRATIX II FPGA 130K 1020FBGA

Data Sheet

0-6: $4,319.05
EP2S130F1020C3N
EP2S130F1020C3N


IC STRATIX II FPGA 130K 1020FBGA

Data Sheet

0-6: $3,926.41
EP2S130F1020C4
EP2S130F1020C4


IC STRATIX II FPGA 130K 1020FBGA

Data Sheet

0-6: $3,778.50
EP2S130F1020C4N
EP2S130F1020C4N


IC STRATIX II FPGA 130K 1020FBGA

Data Sheet

0-6: $3,435.00
EP2S130F1020C5
EP2S130F1020C5


IC STRATIX II FPGA 130K 1020-FBG

Data Sheet

0-6: $2,699.40
