Product Summary

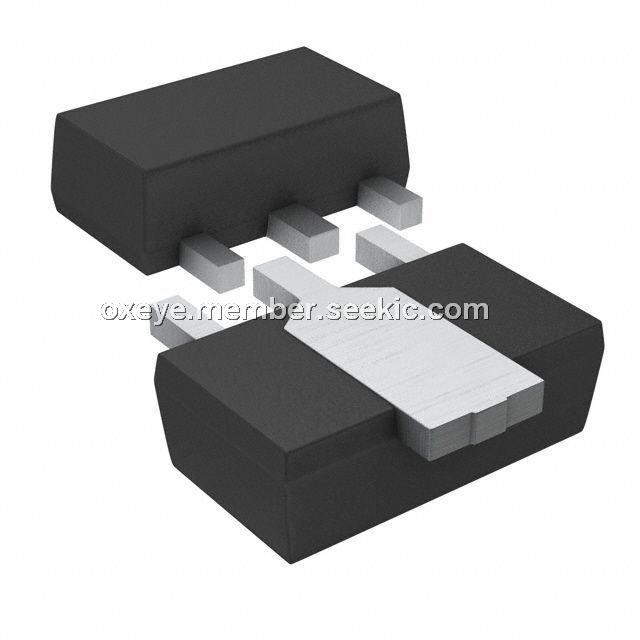

The DTDG23YPT100 is a 1A / 60V Digital transistor. It is suitable for Inverter , Interface, Driver.

Parametrics

DTDG23YPT100 absolute maximum ratings: (1)Supply voltage, VCC: 60±10V; (2)Input voltage, VIN: -6 to 40V; (3)Collector current, IC: 1A; (4)Power dissipation, Pd: 1.5W; (5)Junction temperature, Tj: 150℃; (6)Storage temperature, Tstg: -55 to 150℃.

Features

DTDG23YPT100 features: (1)High DC current gain. (Min. 300 at VO / IO=2V / 0.5A); (2)Low Vo(on). (Typ. 0.4V at IO / II=500mA / 5mA); (3)Built-in zener diode gives strong protection against reverse surge by L-load (an inductive load).

Diagrams

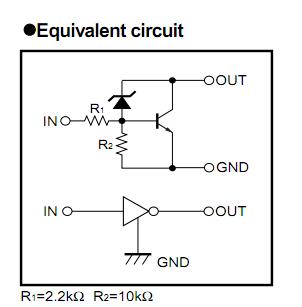

DTDG23YPT100 block digram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DTDG23YPT100
DTDG23YPT100
ROHM Semiconductor
Transistors Switching (Resistor Biased) NPN 60V 1A
Data Sheet
0-1: $0.41
1-25: $0.31
25-100: $0.23
100-500: $0.17
500-1000: $0.14
