TLWR7900

non diffused LED, 10 V, 70 mA, 187 mW, TLWR7900, Vishay Siliconix

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.07~0.13

PartNumber:: TLWR7900

Brand:: Vishay Siliconix - Vishay | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olivia's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-21

From Other Seller

Part Number:TLWR7900
US $0.07 - 0.13
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

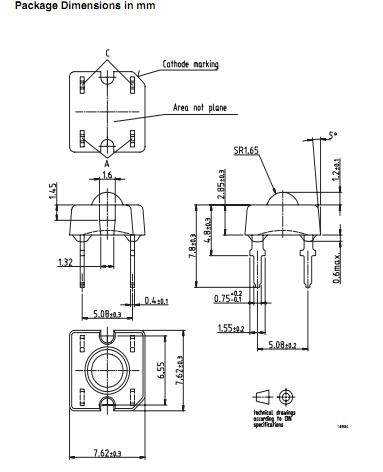

The TLWR7900 is a clear, non diffused LED for high end applications where supreme luminous flux is required. The TLWR7900 is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP and InGaN technologies. The supreme heat dissipation of TELUX allows applications at high ambient temperatures. All packing units are binned for luminous flux and color to achieve best homogenous light appearance in application. The applications of the TLWR7900 are Exterior lighting, Dashboard illumination, Tail-, Stop - and Turn Signals of motor vehicles Replaces incandescent lamps and Traffic signals and signs.

Parametrics

TLWR7900 absolute maximum ratings: (1)Reverse voltage, VR: 10 V; (2)DC Forward current, IF: 70 mA; (3)Surge forward current, IFSM: 1A; (4)Power dissipation, PV: 187 mW; (5)Junction temperature Tj: 125℃; (6)Operating temperature range Tamb: - 40 to + 110℃; (7)Storage temperature range Tstg: - 55 to + 110℃.

Features

TLWR7900 features: (1)Utilizing (AS) AlInGaP and InGaN technologies; (2)High luminous flux; (3) Supreme heat dissipation: RthJP is 90 K/W; (4)High operating temperature: Tamb = - 40 to + 110℃; (5)Type TLWR meets SAE and ECE color requirements; (6) Packed in tubes for automatic insertion; (7)Luminous flux and color categorized for each tube; (8)Small mechanical tolerances allow precise usage of external reflectors or lightguides; (9)TLWR and TLWY types additionally forward voltage categorized; (10)ESD-withstand voltage: > 2 kV acc. to MIL STD 883 D, Method 3015.7 for AlInGaP, > 1 kV for InGaN; (11)Lead-free device.
