Product Summary

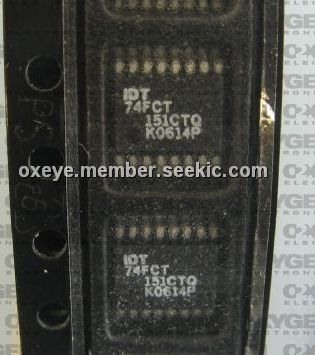

The IDT74FCT151CTQ is a high-speed 8-input multiplexer. It builts using an advanced dual metal CMOS technology. The IDT74FCT151CTQ selects one bit of data from up to eight sources under the control of three select inputs. Both assertion and negation outputs are provided.
Parametrics
IDT74FCT151CTQ absolute maximum ratings: (1)VTERM(2) Terminal Voltage with Respect to GND:–0.5 to +7.0 V; (2)VTERM(3) Terminal Voltage with Respect to GND: –0.5 to VCC +0.5V; (3)TSTG Storage Temperature: –65 to +150℃; (4)IOUT DC Output Current: –60 to +120 mA.
Features
IDT74FCT151CTQ features: (1)Std., A, and C speed grades; (2)Low input and output leakage ≤1μA (max.); (3)Extended commercial range of –40 to +85℃; (4)CMOS power levels; (5)True TTL input and output compatibility; (6)High drive outputs (-15mA IOH, 48mA IOL); (7)Power off disable outputs permit live insertion; (8)Meets or exceeds JEDEC standard 18 specifications; (9)Product available in Radiation Tolerant and Radiation Enhanced versions; (10)Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked); (11)Available in DIP, SOIC, CERPACK and LCC packages.
Diagrams
 |
