Product Summary
The atTINY13V-10SU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the atTINY13V-10SU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
atTINY13V-10SU absolute maximum ratings: (1)Storage Temperature:-65℃ to +150℃; (2)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (3)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (4)Maximum Operating Voltage:6.0V; (5)DC Current per I/O Pin:40.0 mA; (6)DC Current VCC and GND Pins:200.0mA; (7)Operating Temperature:-55℃ to +125℃.
Features
atTINY13V-10SU features: (1)High Performance, Low Power AVR@8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)One 8-bit Timer/Counter with Prescaler and Two PWM Channels; (5)4-channel, 10-bit ADC with Internal Voltage Reference; (6)Programmable Watchdog Timer with Separate On-chip Oscillator; (7)On-chip Analog Comparator; (8)debug WIRE On-chip Debug System; (9)In-System Programmable via SPI Port; (10)External and Internal Interrupt Sources; (11)Low Power Idle, ADC Noise Reduction, and Power-down Modes; (12)Enhanced Power-on Reset Circuit; (13)Programmable Brown-out Detection Circuit; (14)Internal Calibrated Oscillator; (15)Industrial Temperature Range.

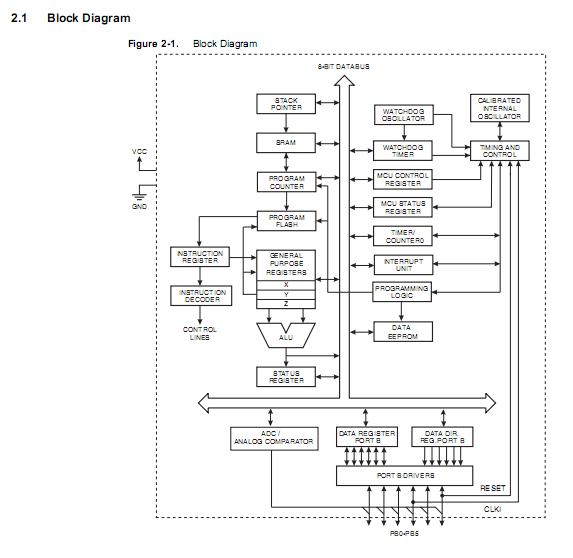

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATtiny13V-10SU |
Atmel |
8-bit Microcontrollers (MCU) 1kB Flash 0.064kB EEPROM 6 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATTINY13V-10SUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 1KB FLSH 64B EE 64B SRAM-10MHz 1.8V |
Data Sheet |
|
|
||||||||||||
