Product Summary

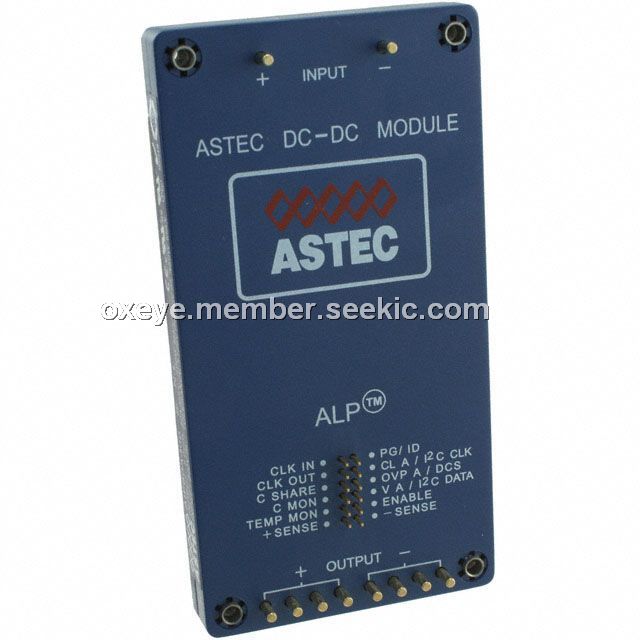

The AIF80A300 is a single output DC to DC converter module, providing up to 600W output with a maximum baseplate operating temperature of 100℃ with no derating. The AIF80A300 features full safety isolated low voltage secondary sidecontrol and Astec Linear Programming (ALP) or through I2C bus for convenient adjustment of the module’s parameters.
Parametrics
AIF80A300 absolute maximum ratings: (1)Input Voltage: Continuous: Transient (100ms), VI, trans: 250,420, 500Vdc; (2)Operating Baseplate Temperature Tc: -20 - 100℃; (3)Start up Baseplate Temperature: -40 - 100℃; (4)Storage Temperature TSTG: -55 to 125℃; (5)Operating Humidity: 15 - 95 %; (6)I/O Isolation: 2700 Vdc.
Features
AIF80A300 features: (1)600W continuous power at 100℃ baseplate temperature; (2)108W/in3 (6.6W/cm3); (3)High efficiency – 91.8% typical; (4)Low output ripple and noise; (5)Positive and Negative Enable function; (6)Excellent transient response; (7)OVP, OCP, V Adj control with ALPTM analog mode linear control, or through I2C bus for digital mode control.; (8)Paralleable with accurate current sharing; (9)Switching Frequency 400KHz.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AIF80A300 |
Emerson / Astec Power |
DC/DC Converters 600W 300Vin 5V@80A |
Data Sheet |
|
|
||||||
|
AIF80A300-L |
Emerson / Astec Power |
DC/DC Converters 600W 5V@80A 4.6" X 2.4" X 0.5" H |
Data Sheet |
|
|
||||||
|
AIF80A300N-NTL |
Emerson / Astec Power |
DC/DC Converters 600W 5V@80A, Neg Non-Threaded |
Data Sheet |
|
|
||||||
|
AIF80A300N-L |
Emerson / Astec Power |
DC/DC Converters 600W 5V@80A, Neg 4.6" X 2.4" X 0.5" H |
Data Sheet |
|
|
||||||
|
AIF80A300-NTL |
Emerson / Astec Power |
DC/DC Converters 600W 5V@80A Non-Threaded |
Data Sheet |
|
|
||||||
