Product Summary

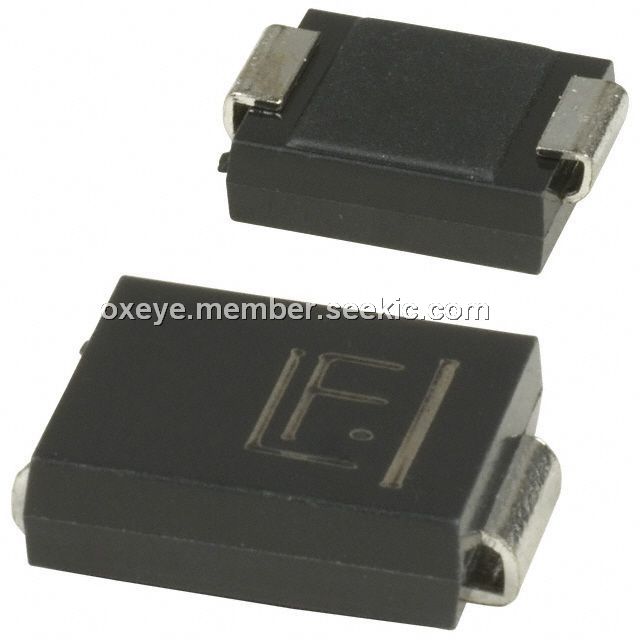

The 5.0SMDJ24CA is a transient voltage suppression diode. It is designed specifically to protect sensitive electronic equipment form voltage transients induced by lightning and other transent voltage events.

Parametrics

5.0SMDJ24CA absolute maximum ratings: (1)peak pulse power dissipation, PPM: 5000W; (2)peak forward surge current, IFSM: 300A; (3)maximum instantaneous froward voltage, VF: 5.0V; (4)operating junction and storage temperature range, Tj, Tstg: -65 to 150℃; (5)typical thermal resistance junction to lead, R: 15℃/W.

Features

5.0SMDJ24CA features: (1)halogen-free; (2)RoHS compliant; (3)for surface mounted applicaitons to optimize board space; (4)low profile package; (5)fast response time; (6)excellent clamping capability; (7)low incremental surge resistance; (8)built in strain relief.

Diagrams

5.0SMDJ24CA dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

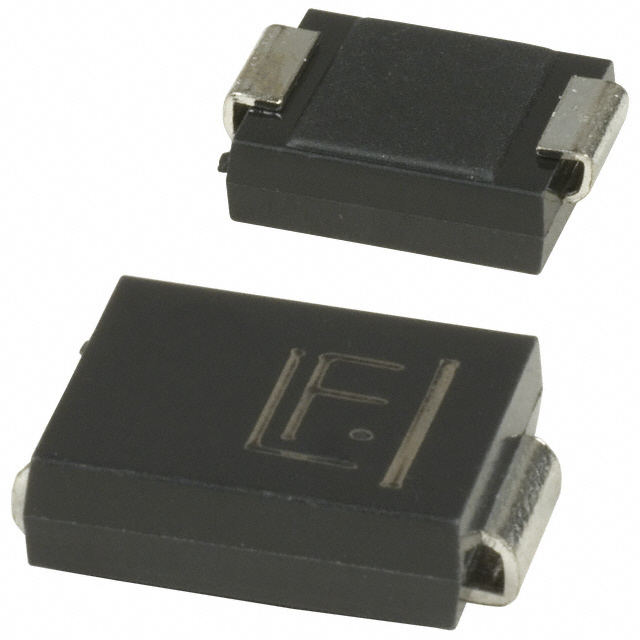

5.0SMDJ24CA
5.0SMDJ24CA
Littelfuse
TVS Diodes - Transient Voltage Suppressors TVS Diode SMC Suf MT
Data Sheet
0-1: $1.52
1-25: $1.37
25-100: $1.18
100-250: $1.00
5.0SMDJ24CA-T7
5.0SMDJ24CA-T7

DIODE TVS 24V 5000W 5% BI SMD
Data Sheet
0-500: $0.72
