Product Summary
The TPS3803-01DCKR is a voltage detector. The TPS3803-01DCKR supervisory circuit provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The TPS3803-01DCKR device has a fixed-sense threshold voltage VIT set by an internal voltage divider, whereas the TPS3803.01 has an adjustable SENSE input that can be configured by two external resistors.
Parametrics
TPS3803-01DCKR absolute maximum ratings: (1)Supply voltage, VDD: +7 V; (2)All other pins: 0.3 V to +7 V; (3)Maximum low-output current, IOL: +5 mA; (4)Maximum high-output current, IOH: 5 mA; (5)Input clamp current, IIK (VI < 0 or VI > VDD): ±10 mA; (6)Output clamp current, IOK (VO < 0 or VO > VDD): ±10 mA; (7)Operating free-air temperature range, TA: 40℃ to +85℃; (8)Storage temperature range, Tstg: 65℃ to +150℃; (9)Soldering temperature: +260℃.
Features
TPS3803-01DCKR features: (1)Single Voltage Detector: Adjustable/1.5 V; (2)Dual Voltage Detector: Adjustable/3.3 V; (3)High ±1.5% Threshold Voltage Accuracy; (4)Supply Current: 3 μA Typical at VDD = 3.3 V; (5)Push/Pull Reset Output Open-Drain Reset Output; (6)Temperature Range: -40℃ to +85℃; (7)5-Pin SC.70 Package.

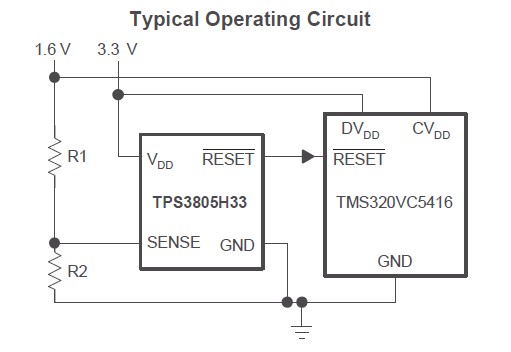

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS3803-01DCKR |
Texas Instruments |
Voltage Detectors / Monitors Adj 1.5V V Detector |
Data Sheet |
|
|
||||||||||||
|
TPS3803-01DCKRG4 |
Texas Instruments |
Voltage Detectors / Monitors Single Voltage Detector |
Data Sheet |
|
|
||||||||||||
