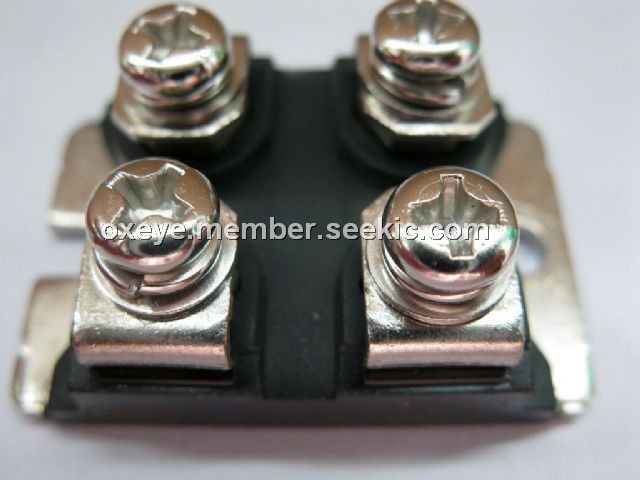

STE48NM50

Power MOSFET, MODULE, 500 V, 48 A, low input capacitance, low gate input resistance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.62~15.87 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.62~15.87

PartNumber:: STE48NM50

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olivia's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-26

From Other Seller

Part Number:STE48NM50
US $7.62 - 15.87
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STE48NM50 is a Power MOSFET. It is a new revolutionary MOSFET technology that associates the Multiple Drain process with the PowerMESH of Company horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The STE48NM50 is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies.

Parametrics

STE48NM50 absolute maximum ratings: (1)VDS Drain-source Voltage (VGS = 0): 500 V; (2)VDGR Drain-gate Voltage (RGS = 20 kΩ): 500 V; (3)VGS Gate- source Voltage: ±30 V; (4)ID Drain Current (continuous) at TC = 25℃: 48 A; (5)ID Drain Current (continuous) at TC = 100℃: 30 A; (6)IDM (l) Drain Current (pulsed): 192 A; (7)PTOT Total Dissipation at TC = 25℃: 450 W; (8)Derating Factor: 3.6 W/℃; (9)dv/dt (1) Peak Diode Recovery voltage slope: 15 V/ns; (10)Tstg Storage Temperature: –65 to 150 ℃; (11)Tj Max. Operating Junction Temperature: 150 ℃.

Features

STE48NM50 features: (1)typical rds(on) = 0.08ω; (2)high dv/dt and avalanche capabilities; (3)100% avalanche tested; (4)low input capacitance and gate charge; (5)low gate input resistance; (6)tight process control and high manufacturing yields.
