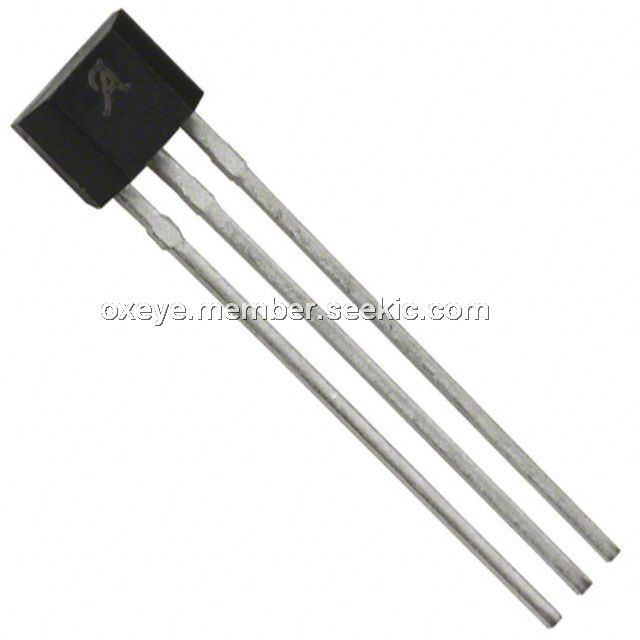

A1101LUA-T

Hall-effect switch, TO92, 30 V, A1101LUA-T, Allegro MicroSystems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.41~0.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.41~0.95

PartNumber:: A1101LUA-T

Brand:: Allegro MicroSystems - Allegro | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olivia's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-25

From Other Seller

Part Number:A1101LUA-T
US $0.41 - 0.95
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The A1101LUA-T is a Hall-effect switch. It is next generation replacements for the popular Allegro 312x and 314x lines of unipolar switches. The A1101LUA-T, produced with BiCMOS technology, consists of devices that feature fast power-on time and low-noise operation. Device programming is performed after packaging, to ensure increased switchpoint accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and lowoffset amplifiers of the A1101LUA-T help to minimize noise and to reduce the residual offset voltage normally caused by device overmolding, temperature excursions, and thermal stress.

Parametrics

A1101LUA-T absolute maximum ratings: (1)Supply Voltage, VCC: 30 V; (2)Reverse Supply Voltage, VRCC: –30 V; (3)Output Off Voltage, VOUT: 30 V; (4)Reverse Output Voltage, VROUT: –0.5 V; (5)Output Current, IOUTSINK: 25 mA; (6)Magnetic Flux Density B: Unlimited G; (7)Operating Ambient Temperature, TA: –40 to 85℃; (8)Maximum Junction Temperature, TJ(max): 165℃; (9)Storage Temperature, Tstg: –65 to 170℃.

Features

A1101LUA-T features: (1)Continuous-time operation: Fast power-on time; Low noise; (2)Stable operation over full operating temperature range; (3)Reverse battery protection; (4)Solid-state reliability; (5)Factory-programmed at end-of-line for optimum performance; (6)Robust EMC performance; (7)High ESD rating; (8)Regulator stability without a bypass capacitor.
