Product Summary

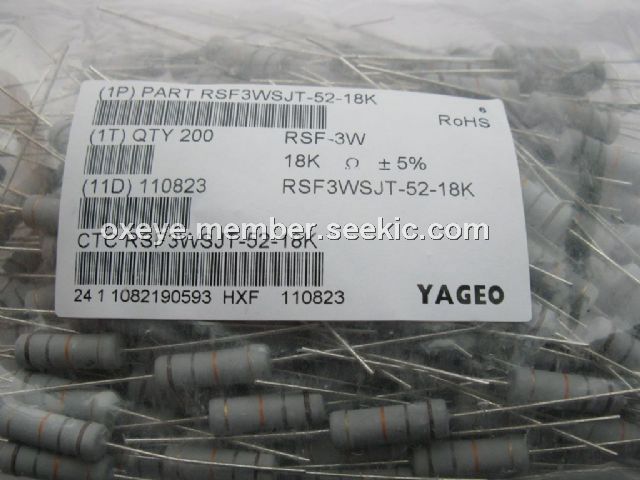

The RSF3WSJT-52-18K is a Metal Oxide Resistor. It can offer excellent performance in applications where stability and uniformity of characteristics are desired. The RSF3WSJT-52-18K provides lower cost alternatives to Carbon Composition Resistors and General Purpose Metal Films. Metal Oxides also can replace many low power General Purpose wirewound applications, saving both money and time, with shorter delivery cycles. The normal style & the miniature style of RSF series are coated with layers of gray and pink colors flame-proof lacquer respectively.

Parametrics

RSF3WSJT-52-18K absolute maximum ratings: (1)Power Rating at 70℃ 1/2W; (2)Operating Temp. Range -55 to +155℃; (3)Maximum Working Voltage 250V; (4)Maximum Overload Voltage 400V; (5)Dielectric Withstanding Voltage 350V; (6)Value Range ±5% 1~510KΩ; (7)Temperature Coefficient ±300ppm/℃.

Features

RSF3WSJT-52-18K features: (1)Low Cost, Prompt Delivery; (2)High Power-to-Size Ratio for Significant Space Savings; (3)Complete Flameproof Construction-UL 1412; (4)High Surge/Overload Capability; (5)Non-Inductive Design; (6)Wide Resistance Range: 1~1MΩ; (7)Resistance ToLerance: ±5%.

Diagrams

RSF3WSJT-52-18K dimensions

RSF300JT-73-100K
RSF300JT-73-100K

RES 100K OHM 3W 5% MTEAL OXIDE
Data Sheet
0-500: $0.08
RSF33W100RC
RSF33W100RC

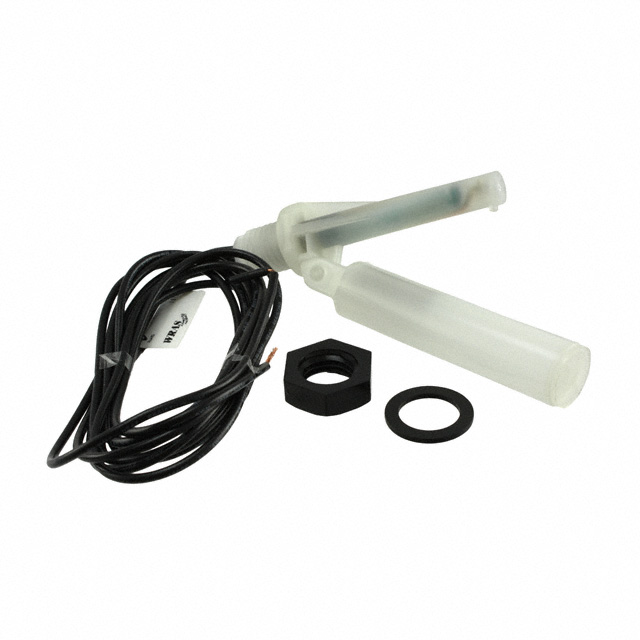

FLOAT SWITCH NYLON N/O 100VA
Data Sheet
0-1: $11.44
1-10: $10.90
10-50: $10.40
50-100: $10.09
RSF3FB10R0
RSF3FB10R0

RES MO 3W 10 OHM 1% AXIAL
Data Sheet
0-1000: $0.16
RSF3FB11R8
RSF3FB11R8

RES MO 3W 11.8 OHM 1% AXIAL
Data Sheet
0-1000: $0.16
RSF3FB121R
RSF3FB121R

RES MO 3W 121 OHM 1% AXIAL
Data Sheet
0-1000: $0.16
RSF3FB14R7
RSF3FB14R7

RES MO 3W 14.7 OHM 1% AXIAL
Data Sheet
0-1000: $0.16
