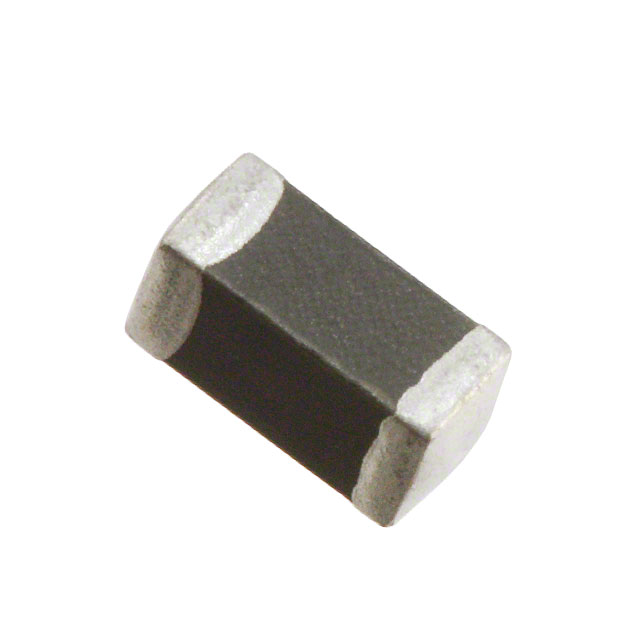

Product Summary

The CT1206K25AUTOG is a SMD multilayer transient voltage suppressor for automotive applications. The applications are (1)Transient overvoltage protection in automotive applications: engine management, airbag, control units, electrohydraulic brake, ABS/ESP, sunroof; (2)Load dump protection; (3)Jump start protection.

Parametrics

CT1206K25AUTOG absolute maximum ratings: (1)VRMS: 14V; (2)VDC: 16V; (3)Isurge: 800A; (4)W: 2400mJ; (5)WLD: 12J; (6)Pdiss: 15mW.

Features

CT1206K25AUTOG features: (1)ESD protection up to 25 kV, ISO 10605 level IV, acc. to IEC 61000-4-2 level 4 (8 kV contact, 15 kV air); (2)High energy absorption capability; (3)Low leakage current; (4)High temperature versions; (5)Stable protection level; (6)Bidirectional clamping; (7)No temperature derating up to 125℃; (8)RoHS-compatible; (9)Nickel barrier and AgPt series suitable for lead-free soldering; (10)Nickel barrier and AgPt series qualified based on AEC-Q200 rev. C; (11)PSpice simulation models available.

Diagrams

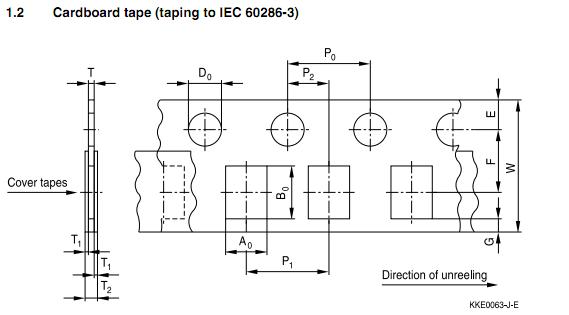

CT1206K25AUTOG dimensions
