Product Summary

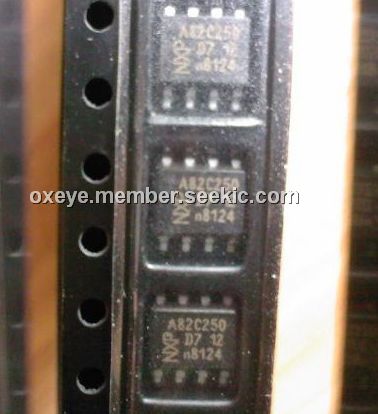

The PCA82C250T/N4 is an interface between the CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Parametrics
PCA82C250T/N4 absolute maximum ratings: (1)supply voltage:4.5 to 5.5 V; (2)supply current(standby mode):- 170 mA; (3)maximum transmission speed (non-return-to-zero):1 Mbaud; (4)input/output voltage:-8 +18 V; (5)differential bus voltage;1.5 to 3.0 V; (6)propagation delay(high-speed mode):50 ns; (7)ambient temperature:-40 +125 ℃.
Features
PCA82C250T/N4 features: (1)Fully compatible with the "ISO 11898" standard; (2)High speed (up to 1 Mbaud); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference(RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference(EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground; (8)Low-current standby mode; (9)An unpowered node does not disturb the bus lines; (10)At least 110 nodes can be connected.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCA82C250T/N4,112 |
NXP Semiconductors |
Network Controller & Processor ICs HI SPD CAN TRANSCVR |
Data Sheet |
Negotiable |
|
||||
|
PCA82C250T/N4,115 |
NXP Semiconductors |
Network Controller & Processor ICs HI SPD CAN TRANSCVR |
Data Sheet |
Negotiable |
|
||||
|
PCA82C250T/N4,118 |
NXP Semiconductors |
Network Controller & Processor ICs HI-SPEED CAN XCVR |
Data Sheet |
Negotiable |
|
||||
