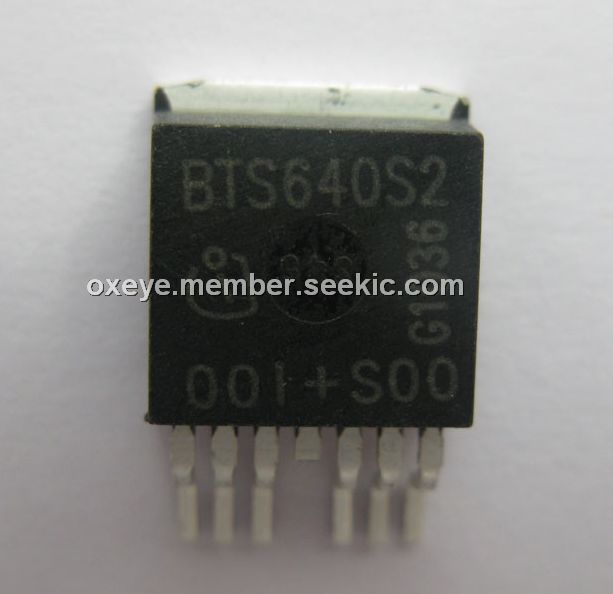

BTS640S2G

High-Side Power Switch, TO220-7, 24A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.03~1.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.03~1.98

PartNumber:: BTS640S2G

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olivia's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-26

From Other Seller

Part Number:BTS640S2G
US $1.03 - 1.98
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS640S2G is a Smart Sense High-Side Power Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback, proportional sense of load current, monolithically integrated in Smart SIPMOS technology. The applications of the BTS640S2G include μC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitve loads, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS640S2G absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 4):43 V; (2)Supply voltage for full short circuit protection:34 V; (3)Load dump protection:60 V; (4)Load current (Short circuit current, see page 5):self-limited; (5)Operating temperature range:-40℃ to +150℃; (6)Storage temperature range:-55℃ to +150℃; (7)Power dissipation (DC), TC ≤ 25℃:85 W; (8)Inductive load switch-off energy dissipation, single pulse:IL = 12.6 A, ZL = 4,2 mH, 0Ω: 0,41J, IL= 4A, ZL = 330mH, 0Ω: 3.5J; (9)Electrostatic discharge capability (ESD): IN:1.0kV, ST, IS:4.0kV out to all other pins shorted:8.0kV; (10)Input voltage (DC):-10V to +16V; (11)Current through input pin (DC):±2.0mA; (12)Current through status pin (DC):±5.0mA; (13)Current through current sense pin (DC):±14mA.

Features

BTS640S2G features: (1)Short circuit protection ; (2)Current limitation ; (3)Proportional load current sense ; (4)CMOS compatible input ; (5)Open drain diagnostic output ; (6)Fast demagnetization of inductive loads ; (7)Undervoltage and overvoltage shutdown with auto-restart and hysteresis ; (8)Overload protection ; (9)Thermal shutdown ; (10)Overvoltage protection including load dump (with external GND-resistor) ; (11)Reverse battery protection (with external GND-resistor) ; (12)Loss of ground and loss of Vbb protection ; (13)Electrostatic discharge (ESD) protection.
