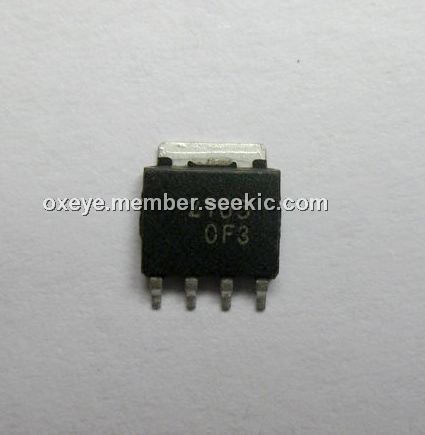

The HAT2166H-EL-E is a Silicon N Channel Power MOS FET.
Parametrics
HAT2166H-EL-E absolute maximum ratings: (1)Drain to source voltage VDSS: 30 V; (2)Gate to source voltage VGSS; ±20 V; (3)Drain current ID: 45 A; (4)Drain peak current ID(pulse): 180 A; (5)Body-drain diode reverse drain current IDR: 45 A; (6)Avalanche current IAP: 25 A; (7)Avalanche energy EAR: 62.5 mJ; (8)Channel dissipation Pch: 25 W; (9)Channel temperature Tch: 150℃; (10)Storage temperature Tstg: –55 to +150℃.
Features
HAT2166H-EL-E features: (1)High speed switching; (2)Capable of 4.5 V gate drive; (3)Low drive current; (4)High density mounting; (5)Low on-resistance RDS(on) = 2.9 mΩ typ. (at VGS = 10 V).

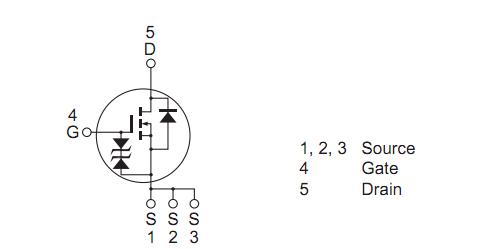

Diagrams
